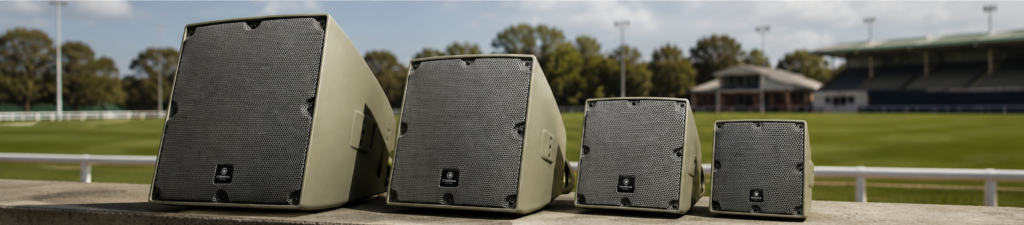

The Compass Audio OUTFIELD Series is built for permanent installations that need reliable sound in demanding weather conditions. The range covers background music and public address through to high-output sound reinforcement, with weather-resistant construction designed for long-term use.
OUTFIELD combines clear speech reproduction with musical sound quality. Models are available for wide-area coverage, controlled directivity and low-frequency reinforcement, giving system designers options to suit the space and its sound requirements.
The series is suited to schools, universities, sporting venues, swimming pools, hospitality precincts, parks and transport infrastructure, along with other commercial and public spaces that need all-weather audio.
| Model | Drivers | Frequency response (−3 dB) |
Power handling (RMS) |
100 V taps | Sensitivity (1 W / 1 m) |
Max SPL Continuous / Peak |
Dispersion H × V (−6 dB) |
Dimensions W × H × D (mm) |
Weight |
|---|---|---|---|---|---|---|---|---|---|
| OUTFIELD 6C | 6.5″ LF 0.8″ HF |
105 Hz – 17 kHz | 100 W | 25 / 50 / 100 W | 93 dB | 113 / 119 dB | 100° × 100° | 256 × 259 × 319 | 7 kg |
| OUTFIELD 8C | 8″ LF 1″ HF |
80 Hz – 18 kHz | 150 W | 37.5 / 75 / 150 W | 95 dB | 117 / 123 dB | 90° × 90° | 300 × 302 × 345 | 11 kg |
| OUTFIELD 12C | 12″ LF 1″ HF |
55 Hz – 18 kHz | 300 W | 50 / 100 / 200 W | 97 dB | 122 / 128 dB | 80° × 80° | 407 × 411 × 448 | 20 kg |
| OUTFIELD 15H | 15″ LF 1.4″ HF |
50 Hz – 18 kHz | 400 W | 75 / 150 / 300 W | 103 dB | 129 / 135 dB | 60° × 40° | 499 × 501 × 596 | 31.5 kg |
| OUTFIELD 15L | 15″ LF 1.4″ HF |
50 Hz – 18 kHz | 400 W | 75 / 150 / 300 W | 103 dB | 129 / 135 dB | 60° × 25° | 499 × 501 × 596 | 31.5 kg |
| OUTFIELD SUB | 15″ LF | 50 Hz – 250 Hz | 400 W | 75 / 150 / 300 W | 98 dB | 124 / 130 dB | N/A | 499 × 501 × 596 | 24.5 kg |
